Checking the list of optional components

List of optional components

No.

Name

Description

1

Main unit

Scans the original in the scanner section, and prints a scanned image in the printer section.

This unit is referred to as "machine", "main unit", or "C287/C227" in the manual.

2

Original Cover OC-514

Used to fix the loaded originals.

This is referred to as Original Cover in the manual.

3

Reverse Automatic Document Feeder DF-628

Automatically feeds and scans originals by page. This unit also reverses and automatically scans 2-sided originals.

This unit is referred to as ADF in the manual.

4

FAX Kit FK-513

Used to operate this machine as a fax machine.

The Hard Disk is optional in some areas. When you use this machine as a fax machine, the optional Hard Disk must also be installed in this machine.

5

Clean Unit CU-101

Collects small particles (UFP) generated in this machine to prevent them from escaping this machine.

The Mount Kit MK-748 is required to install Clean Unit CU-101.

6

Mount Kit MK-748

This unit is required to install Clean Unit CU-101.

7

Authentication Unit AU-102

Performs user authentication by scanning vein patterns in the finger.

To install the Authentication Unit AU-102, the Local Interface Kit EK-608 or Local Interface Kit EK-609 is required in addition to the Working Table WT-506.

This unit is referred to as an Authentication Unit in the manual.

8

Authentication Unit AU-201S

Performs user authentication by scanning information recorded on the IC card or NFC-compatible Android terminal.

To install the Authentication Unit AU-201S, the Local Interface Kit EK-608 or Local Interface Kit EK-609 is required in addition to the Mount Kit MK-735.

This unit can also be installed on the Working Table WT-506.

This unit is referred to as an Authentication Unit in the manual.

9

Working Table WT-506

Provides an area to temporarily place an original or other materials. This is also used when the Authentication Unit AU-102 or Authentication Unit AU-201S is installed.

10

Keypad KP-101

It is equipped on the side of the Control Panel.

Allows you to enter numbers by using the Hardware Keypad.

11

Keyboard Holder KH-102

Install this holder to use a external keyboard.

For details on external keyboards, contact your service representative.

12

Desk DK-514

Used to install this machine on the floor.

This unit is referred to as Desk in the manual.

13

Paper Feed Cabinet PC-414

Allows you to load up to 2500 sheets of 8-1/2 11 (A4) size.

This unit is referred to as LCT (built-in) in the manual.

14

Paper Feed Cabinet PC-214

Allows you to load up to 500 sheets respectively in the top and bottom trays.

This unit is referred to as Double Paper Feed Cabinet in the manual.

15

Paper Feed Cabinet PC-114

Allows you to load up to 500 sheets in the top tray and use the bottom tray as a storage box.

This unit is referred to as Single Paper Feed Cabinet in the manual.

16

Finisher FS-534

Sorts, groups and staples printed paper before outputting it.

To install the Finisher FS-534, the Relay Unit RU-514 and Mount Kit MK-603 are required. Also, Desk DK-514, Paper Feed Cabinet PC-414, Paper Feed Cabinet PC-114, or Paper Feed Cabinet PC-214 must be installed on this machine.

17

Finisher FS-534 SD

Sorts, groups, staples, folds, and binds printed paper before outputting it.

To install the Finisher FS-534 SD, the Relay Unit RU-514 and Mount Kit MK-603 are required. Also, Desk DK-514, Paper Feed Cabinet PC-414, Paper Feed Cabinet PC-114, or Paper Feed Cabinet PC-214 must be installed on this machine.

The Finisher FS-534 contains the Saddle Stitcher.

18

Punch Kit PK-520

Install this unit onto the Finisher FS-534/FS-534 SD.

This unit supports the punching function.

19

Relay Unit RU-514

This unit is required to install the Finisher FS-534/FS-534 SD on this machine.

20

Finisher FS-533

Install this unit onto the output tray of this machine.

The Mount Kit MK-602 and Mount Kit MK-603 are required to install Finisher FS-533.

Sorts, groups and staples printed paper before outputting it.

21

Mount Kit MK-602

This unit is required to install the Finisher FS-533.

22

Punch Kit PK-519

Install this unit onto the Finisher FS-533.

This unit supports the punching function.

23

Job Separator JS-506

Install this unit onto the output tray of this machine.

This unit sorts printed sheets.

The Mount Kit MK-603 is required to install Job Separator JS-506.

This unit is referred to as Job Separator in the manual.

24

Mount Kit MK-603

This unit is required to install the Finisher FS-534/FS-534 SD/FS-533 or Job Separator JS-506 on this machine.

List of other optional components

The following options are built into this machine and are not shown in the figure.

No.

Name

Description

1

Stamp Unit SP-501

Stamps a scanned original when sending a fax. This unit allows you to check that the original has been scanned.

2

Spare TX Marker Stamp 2

A replacement stamp for the Stamp Unit SP-501.

3

Local Interface Kit EK-608

Install this unit when using the voice guidance function, Authentication Unit AU-102, Authentication Unit AU-201S, Upgrade Kit UK-212, or Upgrade Kit UK-215.

The speaker and USB port are added.

This unit is referred to as the Local Interface Kit in the manual.

4

Local Interface Kit EK-609

Install this unit when using the voice guidance function, Authentication Unit AU-102, Authentication Unit AU-201S, Upgrade Kit UK-212, Upgrade Kit UK-215, or the connection function with a Bluetooth LE-compatible iOS terminal.

The speaker, USB port, and receiving device for Bluetooth LE communication are added.

This unit is referred to as Local Interface Kit or Local Interface Kit (voice guidance / Bluetooth LE compatible).

  • For details on the association with an iOS terminal, refer to Here.

  • For details on the user authentication of an iOS terminal, refer to Here.

5

i-Option LK-102 v3

Supports the PDF processing function that is one of the advanced functions.

6

i-Option LK-104 v3

Supports the voice guidance function that is one of the advanced functions.

7

i-Option LK-105 v4

Supports the searchable PDF function that is one of the advanced functions.

8

i-Option LK-106

Used to add a bar code font that is one of special fonts.

9

i-Option LK-107

Used to add a unicode font that is one of special fonts.

10

i-Option LK-108

Used to add an OCR font that is one of special fonts.

In the standard, the OCR-B font (PostScript) is available. Installing the i-Option LK-108 allows use of the OCR-A font (PCL).

11

i-Option LK-110 v2

Used to add an advanced function that converts a file into the DOCX or XLSX type or generates highly-functional and high-quality data.

i-Option LK-110 v2 includes the function licenses for i-Option LK-102 v3 and LK-105 v4. If you purchase i-Option LK-110 v2, you do not need to purchase i-Option LK-102 v3 or LK-105 v4.

For details about functions able to be added, refer to Here.

12

i-Option LK-111

Supports the ThinPrint function that is one of the advanced functions.

13

i-Option LK-114

Supports the serverless pull printing function that is one of the advanced functions.

14

i-Option LK-115 v2

You can use TPM (Trusted Platform Module) that is one of the advanced functions. Security enhancement is realized by encrypting confidential information such as certificates and passwords of this machine.

15

Upgrade Kit UK-211

  • Install this unit when using i-Option LK-102 v3, LK-104 v3, LK-105 v4, LK-106, LK-107, LK-108, LK-110 v2, or LK-114.

  • Install this unit when using My Address in association with My Panel Manager.

This unit is referred to as Extension Memory in the manual.

The Hard Disk is optional in some areas. When installing the optional Extension Memory, the optional Hard Disk must also be installed in this machine.

16

Upgrade Kit UK-212

Allows you to use this machine in a wireless network environment.

To install the Upgrade Kit UK-212, the Local Interface Kit EK-608 or Local Interface Kit EK-609 is required.

This unit is referred to as the Wireless LAN Interface Kit in the manual.

17

Upgrade Kit UK-215

Allows you to use this machine in a wireless network environment.

To install the Upgrade Kit UK-215, the Local Interface Kit EK-608 or Local Interface Kit EK-609 is required.

This unit is referred to as the Wireless LAN Interface Kit in the manual.

The Upgrade Kit UK-215 is only available in some areas.

18

Heater HT-509

Prevents paper in a paper tray from being affected by humidity.

The Heater HT-509 can be mounted when you purchase the Paper Feed Cabinet PC-114, Paper Feed Cabinet PC-214, Paper Feed Cabinet PC-414, or Desk DK-514.

19

Power Supply BOX MK-734

Turns on/off the Heater HT-509 operations.

The Power Supply BOX MK-734 can be mounted when you purchase the Paper Feed Cabinet PC-114, Paper Feed Cabinet PC-214, Paper Feed Cabinet PC-414, or Desk DK-514.

20

Mount Kit MK-735

Required to have Authentication Unit AU-201S built in to the main unit.

21

Hard Disk HD-522

Used to increase the hard disk storage capacity to add functions.

The hard disk is installed as the standard in North America and Europe.

Front

The illustration shows the main unit with Reverse Automatic Document Feeder DF-628, and Paper Feed Cabinet PC-414.

No.

Name

Description

1

Original Pad

Fixes the loaded originals.

2

LCT (built-in)

Allows you to load up to 2500 sheets.

This tray can hold up to 1000 sheets of Thick 1, Thick 1+, Thick 2, and Thick 3.

3

Jam Removal Dial

Turn this dial to remove paper that caused a paper jam in the ADF.

The illustration shows the main unit with Paper Feed Cabinet PC-214 or Paper Feed Cabinet PC-114, and Reverse Automatic Document Feeder DF-628.

No.

Name

Description

4

Left Cover Release Lever

Used to open the Left Cover.

5

Left Cover

Open the Left Cover when clearing a paper jam.

6

Lateral Guide

Adjust this guide along the width of the original.

7

Original Tray

Load the original face up in this tray.

8

Original Output Tray

The scanned original is fed out onto this tray.

9

Bottom Right Door

Open this door when clearing a paper jam in the Tray3 or Tray4 transport unit.

10

Bottom Right Door Release Lever

Used to lock the Bottom Right Door.

11

Tray3

Allows you to load up to 500 sheets.

This tray can hold up to 150 sheets of Thick 1, Thick 1+, Thick 2, and Thick 3.

12

Tray4/Storage Box

Used as a Storage Box when installing Single Paper Feed Cabinet.

This box allows you to load up to 500 sheets when Double Paper Feed Cabinet is installed.

This tray can hold up to 150 sheets of Thick 1, Thick 1+, Thick 2, and Thick 3.

Side/rear

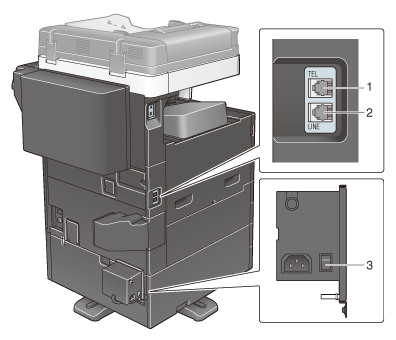

The illustration shows the main unit with Reverse Automatic Document Feeder DF-628, Paper Feed Cabinet PC-214, Fax Kit FK-513, Power Supply BOX MK-734, Clean Unit CU-101, and Mount Kit MK-748.

No.

Name

Description

1

Jack for connecting a telephone (TEL PORT)

Used to connect a telephone cord.

2

Telephone Jack 1 (LINE PORT)

Used to connect a general telephone subscriber line.

3

Heater Power Switch

Used to turn Heater operations on or off. This function prevents paper from being affected by humidity when the power is turned on.

The dehumidifier Heater is available when you purchase Single/Double Paper Feed Cabinet, LCT (built-in), or Desk.
